Waterless Slide
Ref. NEV-TOBSIN
A fantastic attraction for campsites, holiday resorts, water parks and leisure areas, or nearby.
Technical specifications
-
Width2.03 m
-
Lengthaccording to the client's requirements
Description

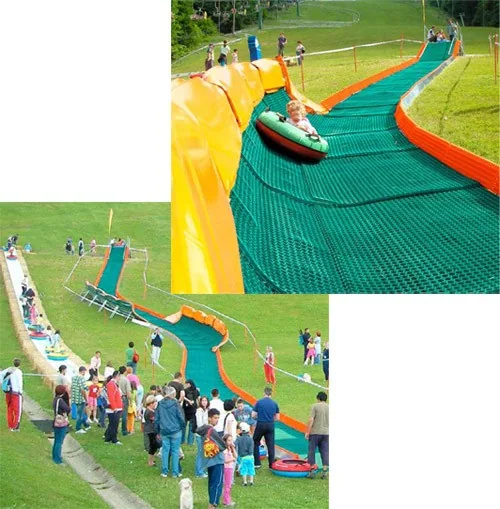

The waterless slide can be used in any season and almost any location. It is easy to install and has minimal running costs.
Children and adults slide down the track comfortably seated on special tubes.
The slides are designed around their users: fast but safe banked curves for thrills at any age, and gentler tracks for younger children.

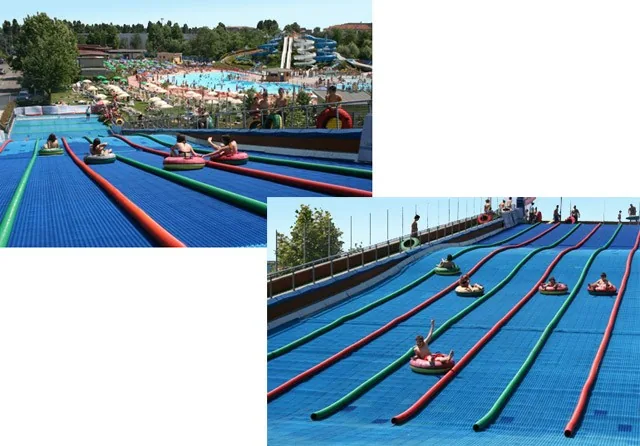

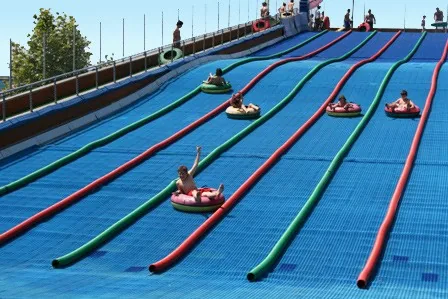

Tracks range from 40 to 300 metres in length and can be used by 30 to 40 people at once. The ideal track is of medium length, 80 to 150 metres, with several parallel lanes.
Modules
The waterless slide is designed to measure and can be modified each year by adding new elements, bringing new excitement for users and extending the product's life.
Slope
Minimum slope: 10%, for toddler tracks up to 50 metres long.
Ideal slope: 16-23%, for users aged 3 and over. Banking modules are required to form the curves and limit tube speed.
Maximum slope: 30%. Banking modules are required to form the curves and limit tube speed.

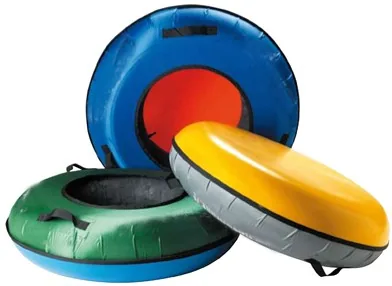

Sliding tubes
Colourful sliding tubes with an inflatable inner tube, hard-wearing nylon cover and rigid sliding base.
- External diameter: 100 cm
- Internal diameter: 40 cm
Note: as this is a customised product, it is sold on a quotation basis.
