Description

Water slides are hugely popular in water parks and leisure pools, giving guests hours of fun.

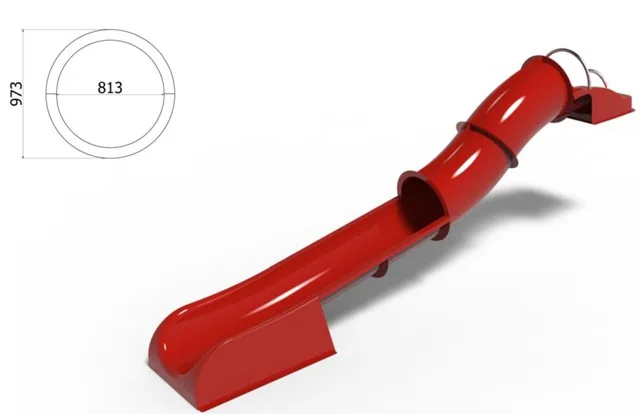

The compact hydrotube slide is made up of prefabricated glass-fibre reinforced polyester (GRP) sections, bolted and sealed together, according to the engineering calculations and drawings produced by our specialists.

Components supplied

• Slide flumes
• Entry tray with a non-slip safety finish where required, designed for easy connection to the PVC water supply pipework
• Flanges precision-drilled in the factory
• Crossbar (or handrail) to help riders start sliding
• Special sealant for the joints
• M10 A2 stainless steel nuts and bolts

Sections made using LRTM (light resin transfer moulding) have a smooth, glossy outer finish. Special sections (entry and exit pieces, guards and run-outs) are made from hand-laid fibreglass.

Further details

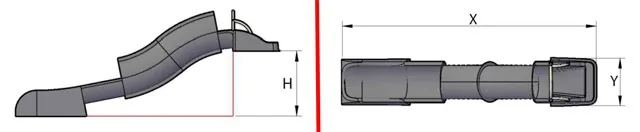

• Height: 1.55 m
• Length: 5.40 m
• Slope: 28.7%
• Dimension X: 6.30 m
• Dimension Y: 1.18 m
• Type 2.1 according to EN 1069

The slide's engineering is carefully designed to balance the thrill of the ride with the industry's highest safety standards, in accordance with European standard EN 1069-1. The slide is opaque and its colour is chosen by the client.

Note: this slide is sold on a quotation basis. If you wish, we will prepare a design and proposal tailored to your project.
