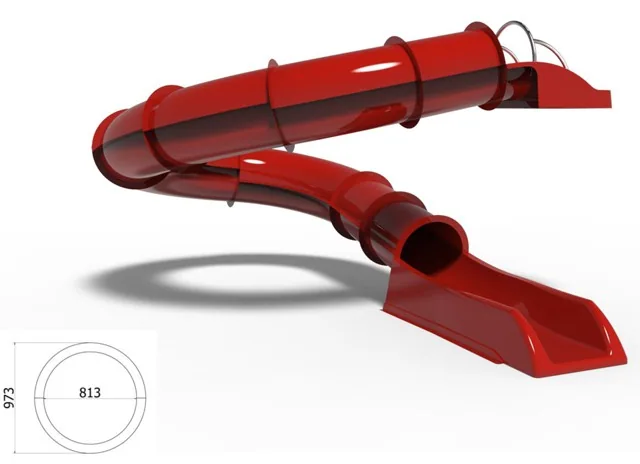

SIMPLE LOOP 270 – 14,50 M - COMPACT HYDROTUBE SLIDE

Water slides are highly popular in waterparks and leisure pools, providing guests with hours of fun.

The compact hydrotube water slides, are formed by the bolted and sealed assembly of sections made of glass-fibre reinforced polyester (GFRP), according to the engineering calculations and drawings provided by our experts.

The waterslide is supplied including:

• Waterslide flumes
• Entry tray; equipped where required with a safety non-slip finish and designed for simple connection to water supply PVC piping
• Flanges precision pre-drilled in factory
• Crossbeam (or handrail) to assist sliding at the start of the slide
• Filler especially indicated to seal the joints
• M10 stainless steel A2 nuts and bolts

In the case of slide sections made using LRTM (light resin transfer moulding), the outside surfaces have a smooth and shiny finish. Special sections (entry and exit pieces, runouts) are always manufactured with layered fibreglass.

FURTHER DETAILS

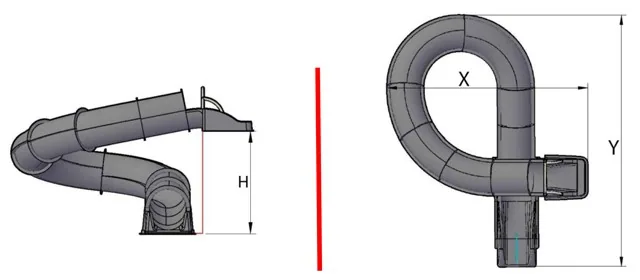

-       Height: 2.25 m

-       Length: 14.50 m

-       Slope: 15.5%

-       Dimension X: 5.32 m

-       Dimension Y: 6.68 m

-       Type 2.1 according to EN1069

The slide’s engineering design is undertaken with great care, balancing the thrill of the ride with the industry’s highest safety standards. It’s designed according to the European standard EN 1069/1.The slide is opaque and its colour can be chosen to suit client requirements.

The sale of this waterslide requires a quote. If you wish to receive further information on this attraction, or a personalised design and quote adapted to your requirements, please contact us by clicking here
